Used 320 Ton JM320-MK6 Injection Molding Machine | A/B/C-Screw 60/67/75mm, Max PS Shot Weight:861g

Used 320 Ton JM320-MK6 Injection Molding Machine | A/B/C-Screw 60/67/75mm, Max PS Shot Weight:861g
Used 320 Ton JM320-MK6 Injection Molding Machine | A/B/C-Screw 60/67/75mm, Max PS Shot Weight:861g
Used 320 Ton JM320-MK6 Injection Molding Machine | A/B/C-Screw 60/67/75mm, Max PS Shot Weight:861g
Used 320 Ton JM320-MK6 Injection Molding Machine | A/B/C-Screw 60/67/75mm, Max PS Shot Weight:861g
Used 320 Ton JM320-MK6 Injection Molding Machine | A/B/C-Screw 60/67/75mm, Max PS Shot Weight:861g
Used 320 Ton JM320-MK6 Injection Molding Machine | A/B/C-Screw 60/67/75mm, Max PS Shot Weight:861g

Year
2022
Make
CHEN HSONG
Model
JM320-MK6
Description
Lots of stock for sell, Contact us for good price.
Reference #
Y-Z
Price
GET A QUOTE
INQUIRE NOW

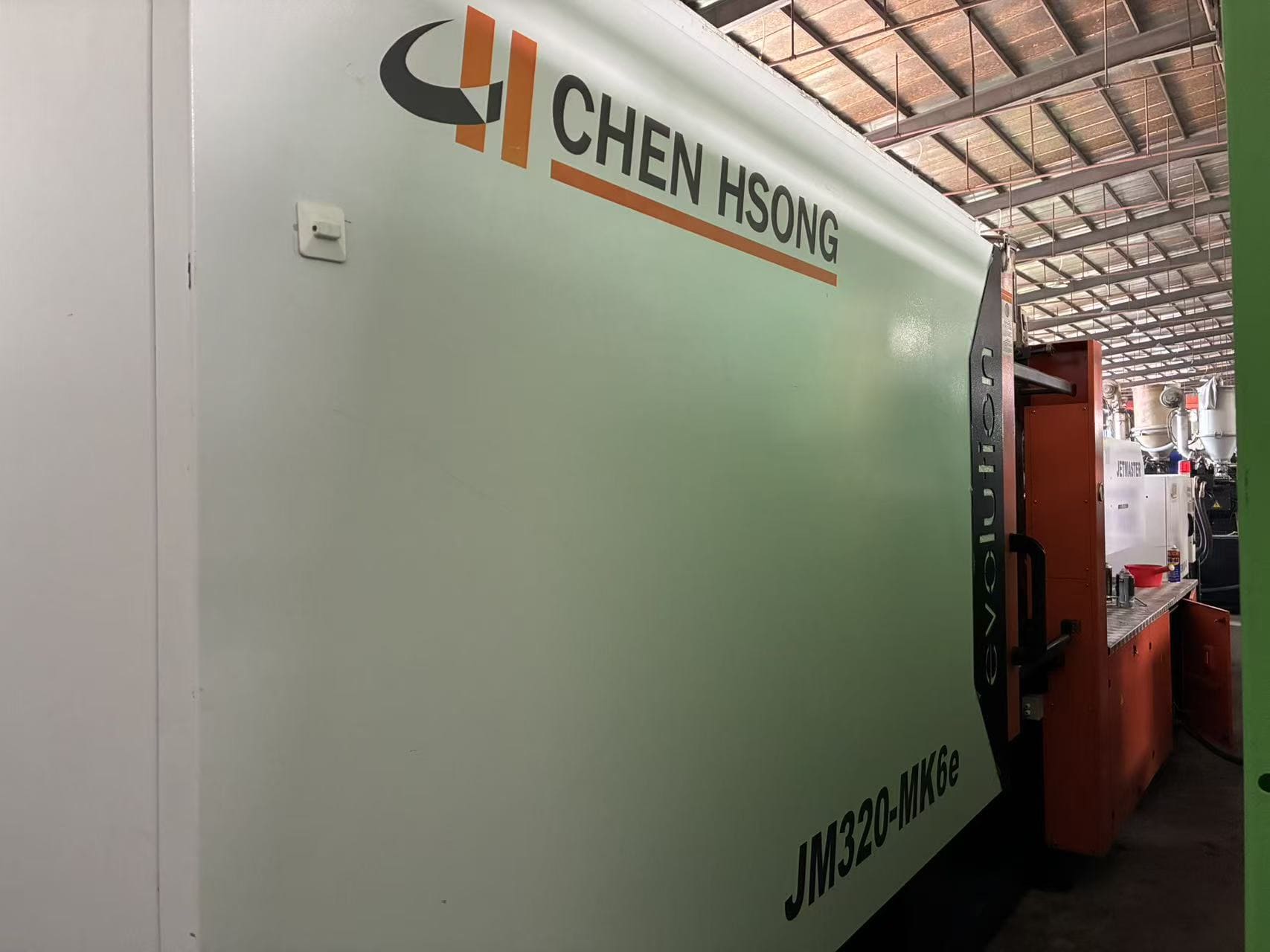

This used JM320-MK6 injection molding machine,320-ton clamping force with triple-screw options for mass-producing medium size plastic parts

Main Specifications
Screw Diameter (mm)
67
lnjection Weight (PS)(g)
1074
lnjection Rate (PS)(g/s)
313
Clamping Force (kN)
3200
Dist. Between Tie Bars (HxV)(mm)
660x660
Machine Dimension (l x w x h)
6.7x1.7x2.4
Machine Weight (t)
11.8
JM320-MK6e Download PDF Now

This is a used JM320-MK6 injection molding machine with three screw options(A:60mm, B:67mm, C:75mm)

Max clamping force:320 ton. PS shot weight:861g(A)/1074g(B)/1346g(C), max injection pressure 2263/1815/1448 kgf/cm².

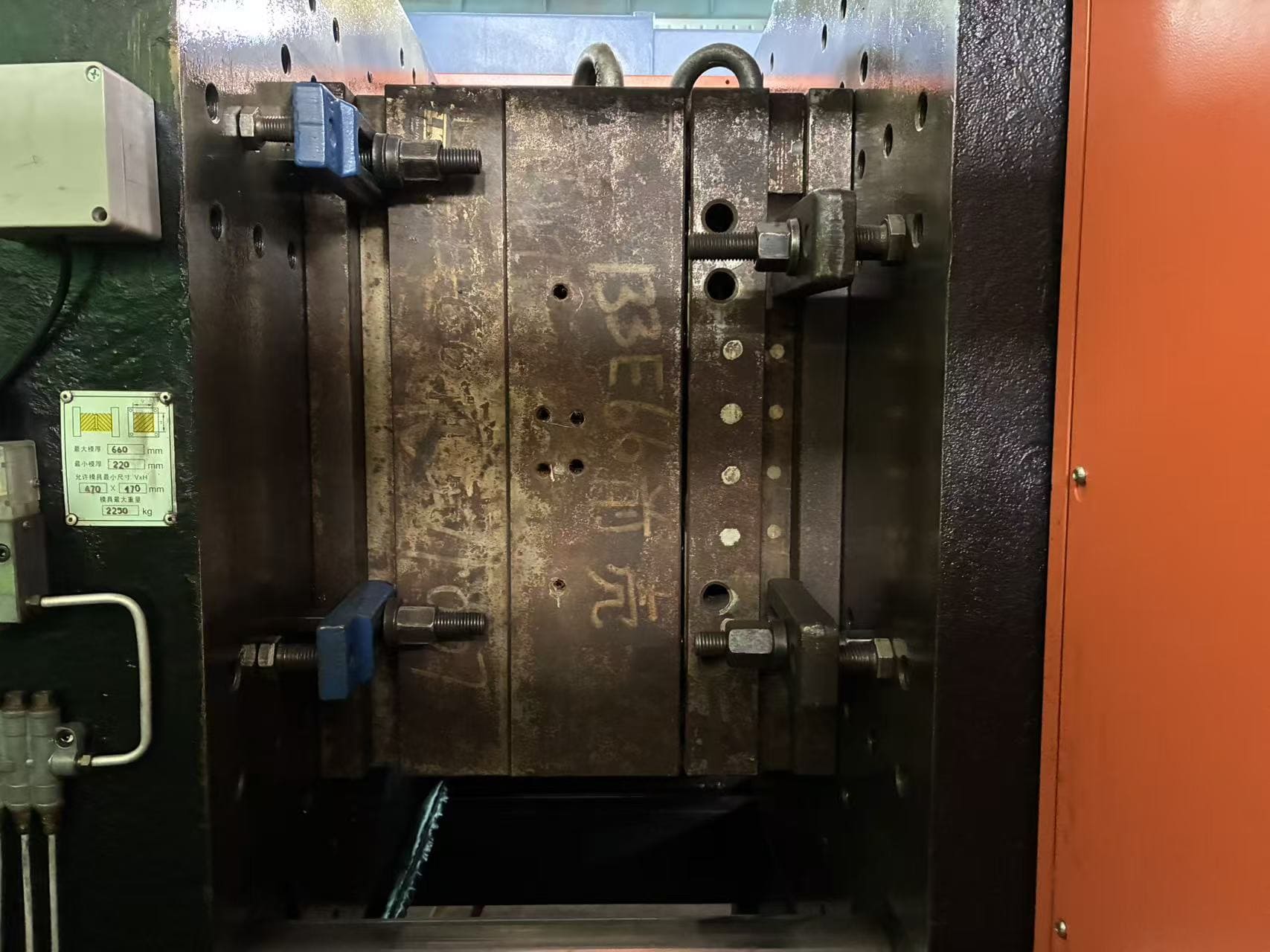

Tie-bar space 660×660 mm, mould thickness 220-660 mm, ejector force 7.7 ton for smooth demolding of medium plastic workpieces.

Suitable Products:
‑ Daily household plastics: laundry basket parts, kitchen storage containers, bathroom shelf shells and large cosmetic packaging
– Electronic components: medium power supply housings, control panel covers, cable junction boxes and insulating brackets
– Small auto plastic parts: side mirror housings, door armrest shells, seat trim panels and interior storage bin parts
– Packaging & industrial parts: wide-mouth bottle caps, thick-wall food containers, plastic bearing sleeves and medium-sized structural engineering components
