Year
2015
Make
CHEN HSONG
Model
EM260-SVP-2
Description
Lots of stock for sell, Contact us for good price.
Reference #
Y-Z
Price
GET A QUOTE
INQUIRE NOW

Used EM260-SVP-2 injection molding machine,260-ton clamping force with triple-screw options for mass-producing small & medium precision plastic parts.

Main Specifications
Screw Diameter (mm)
60
lnjection Weight (PS)(g)
715
lnjection Rate (PS)(g/s)
268
Clamping Force (kN)
2600
Dist. Between Tie Bars (HxV)(mm)
580 x 580
Machine Dimension (l x w x h)
6,4 x 1,5 x 2,2
Machine Weight (t)
8
EM260-SVP-2 Download PDF Now

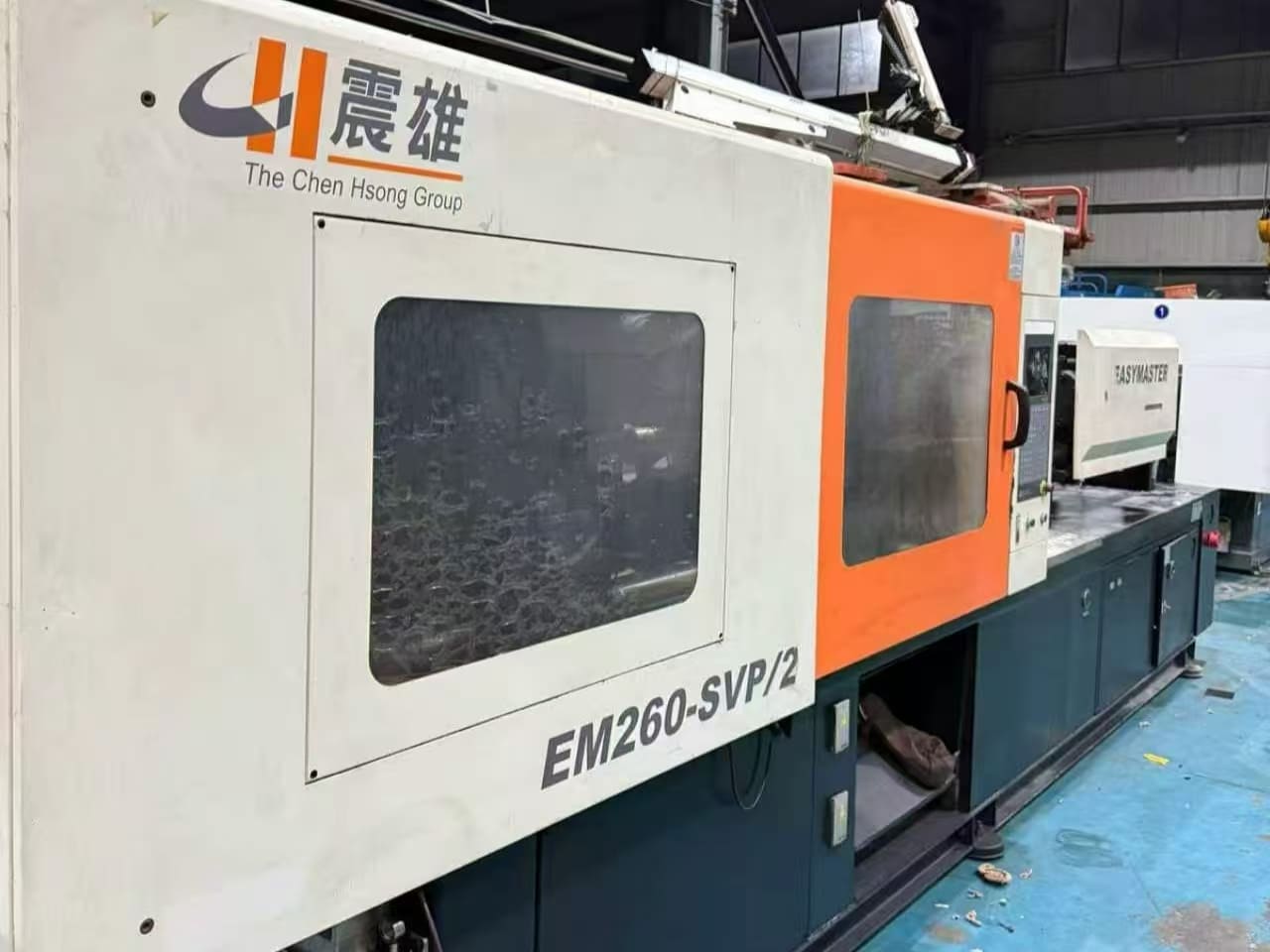

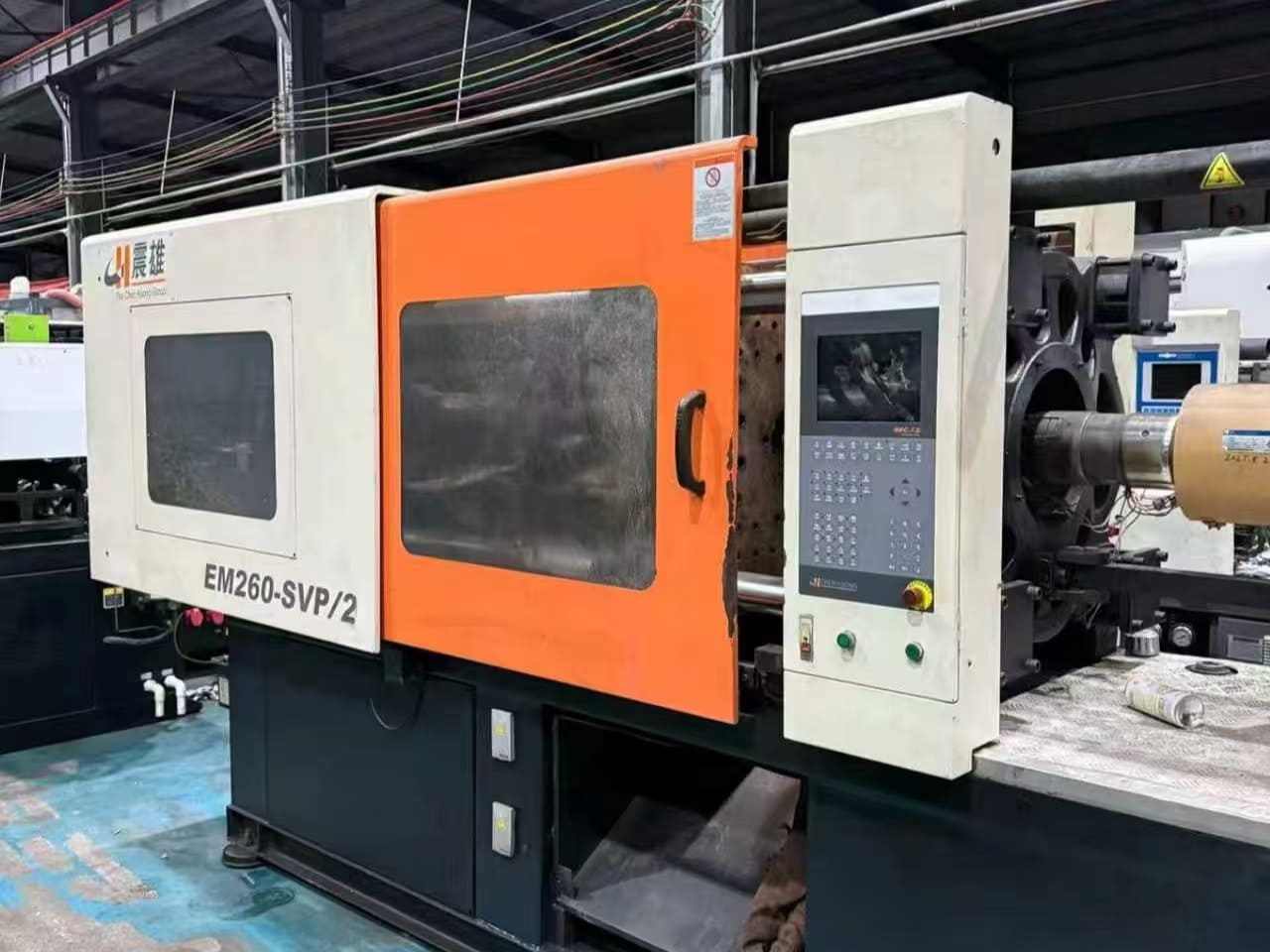

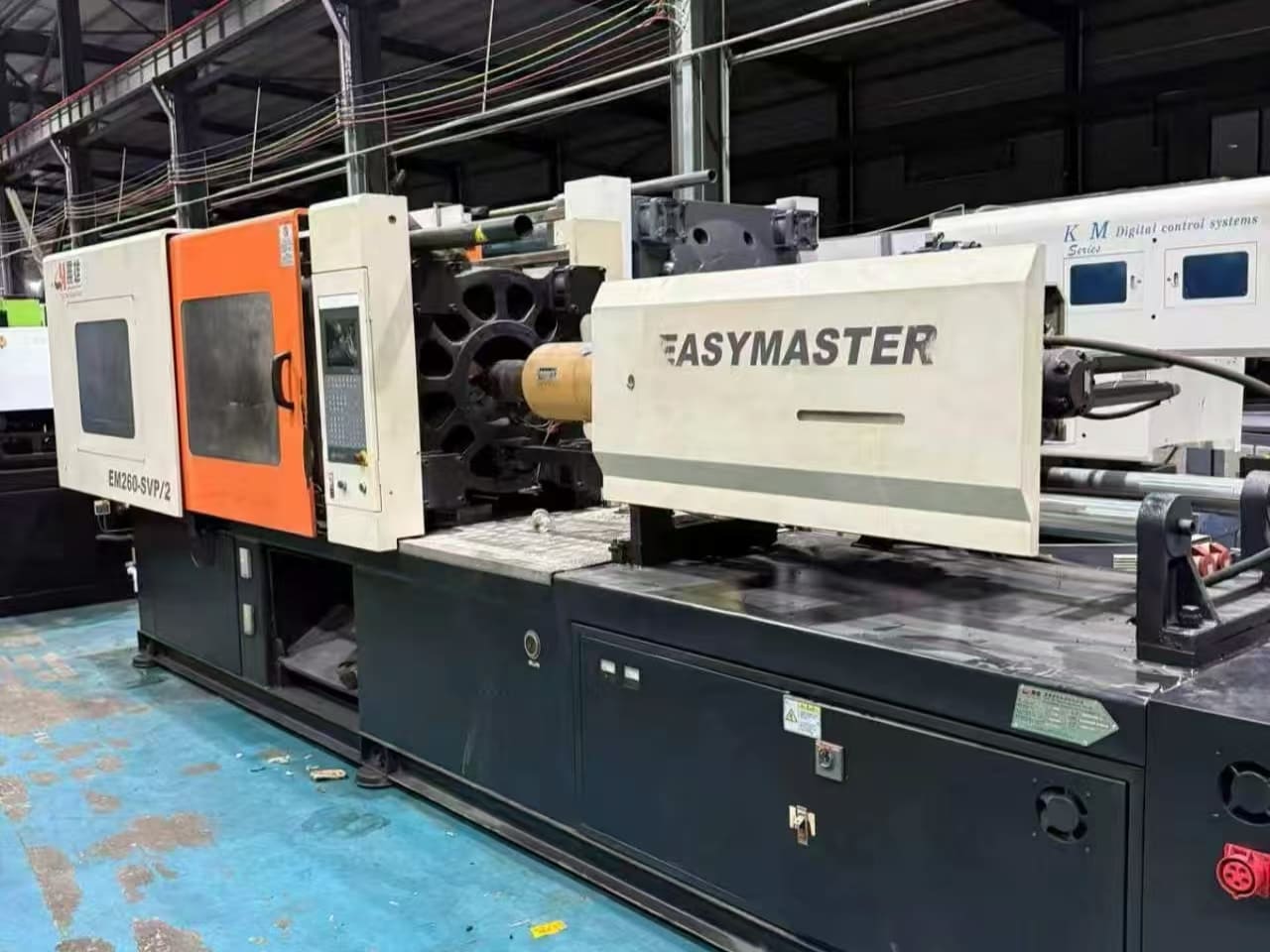

This is a used EM260-SVP-2 injection molding machine with three screw options(A:52mm, B:60mm, C:67mm)

Max clamping force:260 t. PS shot weight:537g(A)/715g(B)/892g(C), max injection pressure 2304/1723/1386 kgf/cm².

Tie-bar space 580×580 mm, mould thickness 195-600 mm, ejector force 7.7 t for smooth demolding of small and medium plastic workpieces.

Suitable Products:
‑Daily household plastics: food storage containers, shower accessories, toothbrush holders and plastic tableware
– Electronic components: power adapter shells, cable glands, sensor housings and terminal blocks
– Small auto plastic parts: door handle covers, wire retainers, bump stops and interior decorative caps
– Packaging & industrial parts: cosmetic jars, blister packaging shells, gear housings and precision plastic spacers
