Used 320 Ton EM320-SVP-2 Injection Molding Machine | A/B/C-Screw 60/67/75mm, Max PS Shot Weight 1300g

Used 320 Ton EM320-SVP-2 Injection Molding Machine | A/B/C-Screw 60/67/75mm, Max PS Shot Weight 1300g
Used 320 Ton EM320-SVP-2 Injection Molding Machine | A/B/C-Screw 60/67/75mm, Max PS Shot Weight 1300g
Used 320 Ton EM320-SVP-2 Injection Molding Machine | A/B/C-Screw 60/67/75mm, Max PS Shot Weight 1300g
Used 320 Ton EM320-SVP-2 Injection Molding Machine | A/B/C-Screw 60/67/75mm, Max PS Shot Weight 1300g
Used 320 Ton EM320-SVP-2 Injection Molding Machine | A/B/C-Screw 60/67/75mm, Max PS Shot Weight 1300g
Used 320 Ton EM320-SVP-2 Injection Molding Machine | A/B/C-Screw 60/67/75mm, Max PS Shot Weight 1300g

Year
2015
Make
CHEN HSONG
Model
EM320-SVP-2
Description
Lots of stock for sell, Contact us for good price.
Reference #
Y-Z
Price
GET A QUOTE
INQUIRE NOW

Used EM320-SVP-2 injection molding machine,320-ton clamping force with triple-screw options for mass-producing medium-large plastic parts.

Main Specifications
Screw Diameter (mm)
67
lnjection Weight (PS)(g)
1038
lnjection Rate (PS)(g/s)
305
Clamping Force (kN)
3200
Dist. Between Tie Bars (HxV)(mm)
660 x 660
Machine Dimension (l x w x h)
6,9 x 1,6 x 2,3
Machine Weight (t)
10.6
EM320-SVP-2 Download PDF Now

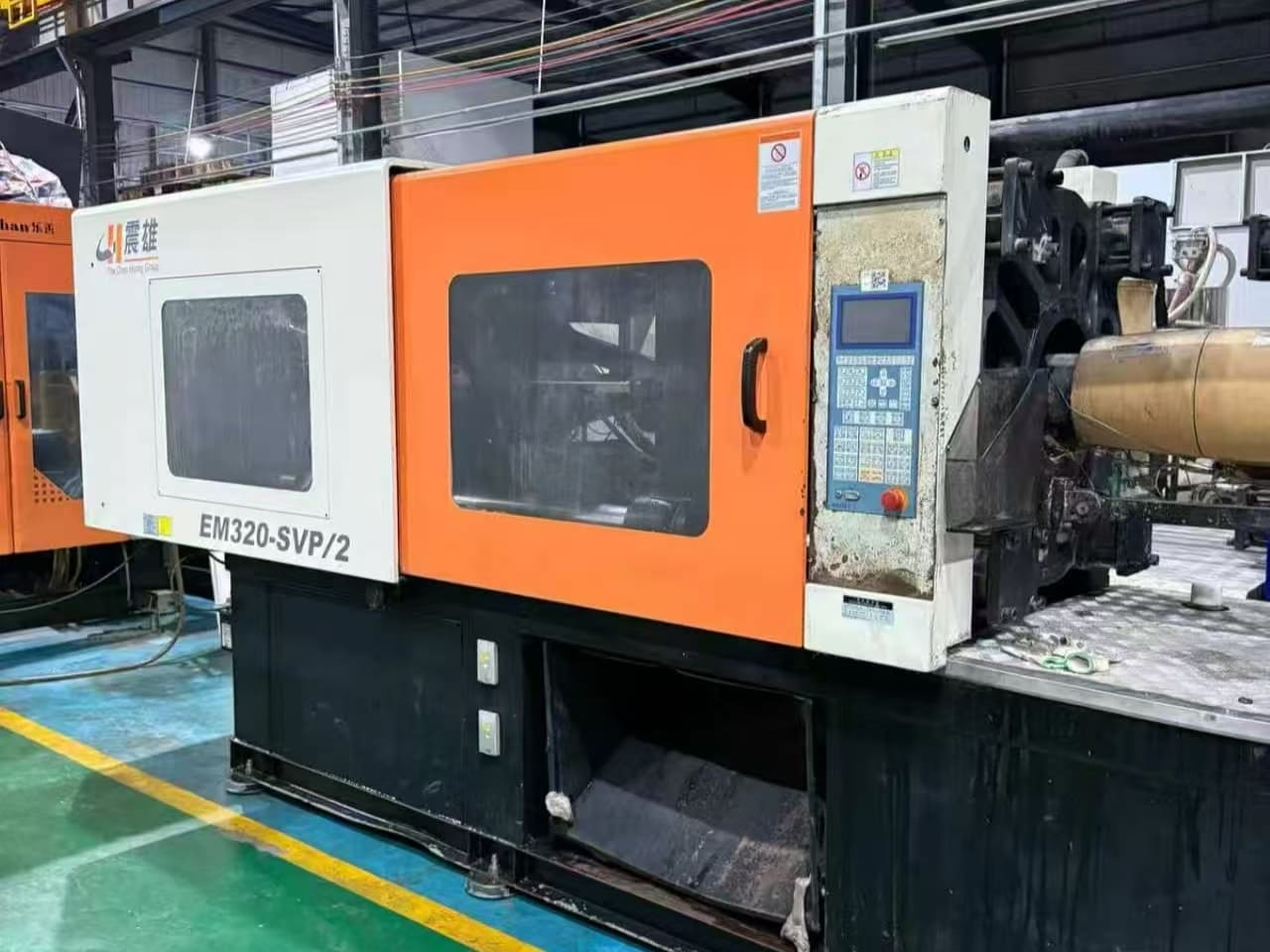

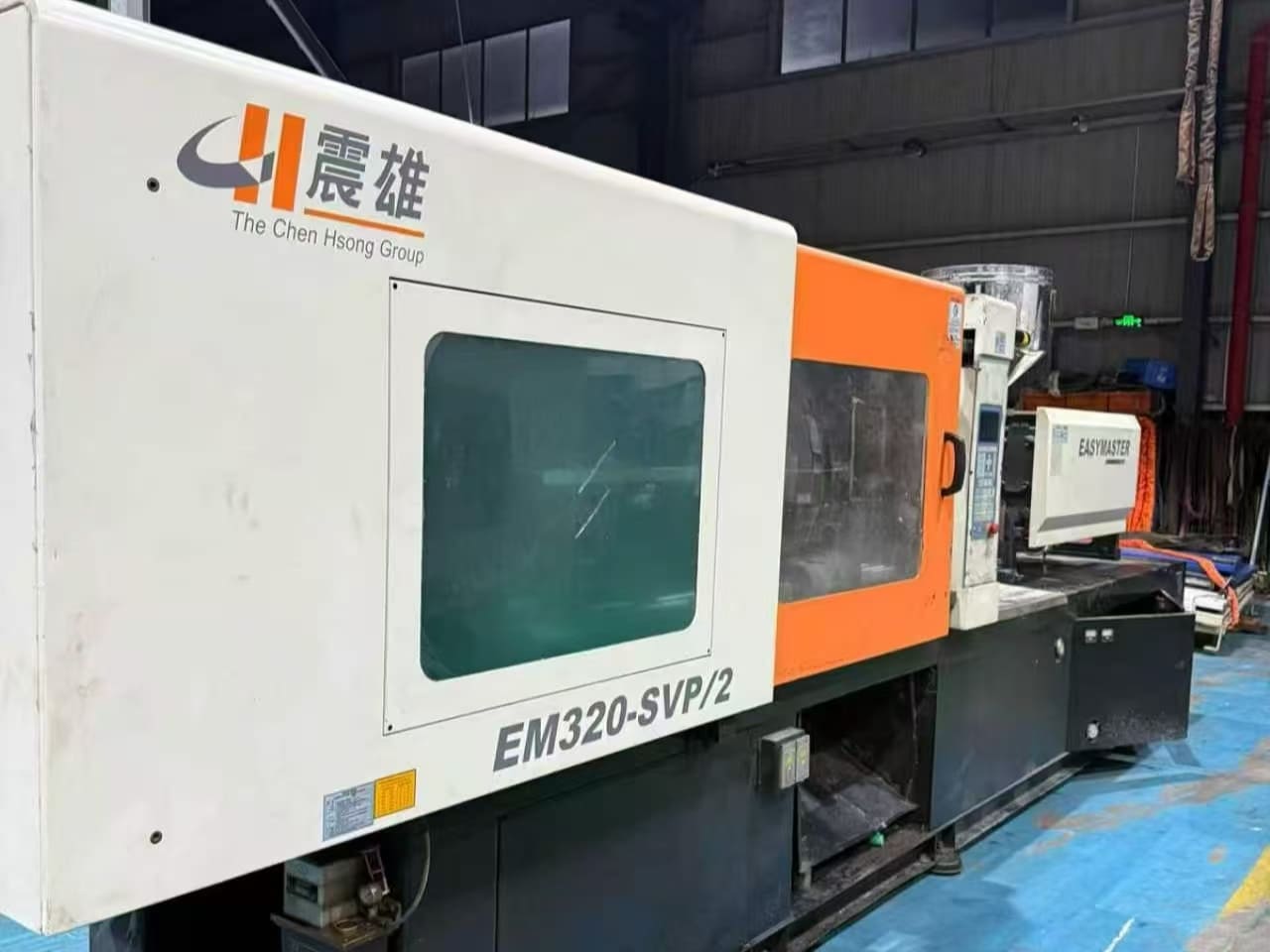

This is a used EM320-SVP-2 injection molding machine with three screw options(A:60mm, B:67mm, C:75mm)

Max clamping force:320 t. PS shot weight:832g(A)/1038g(B)/1300g(C), max injection pressure 2233/1784/1427 kgf/cm².

Tie-bar space 660×660 mm, mould thickness 220-660 mm, ejector force 7.7 t for smooth demolding of medium-large plastic workpieces.

Suitable Products:
‑ Daily household plastics: food containers, laundry baskets, shower trays and large storage bins
Electronic components: large power supply housings, junction boxes, control panel covers and cable connectors
Small auto plastic parts: door trim panels, wheel arch covers, seat back shells and bumper decorative pieces
Packaging & industrial parts: plastic pallets, thick-wall packaging casings, pump housings and large engineering plastic components
