Year
2023
Make
HAITIAN
Model
MA1600WM/160-80
Description
Lots of stock for sell, Contact us for good price.
Reference #
Y-H
Price
GET A QUOTE
INQUIRE NOW

Used Haitian MA1600WM/160-80 two-color rotary injection molding machine,1600kN clamping force with dual injection units for mass-producing two-color plastic parts

Main Specifications
Screw Diameter (mm)
22
lnjection Weight (PS)(g)
35
lnjection Rate (PS)(g/s)
55
Clamping Force (kN)
1600
Dist. Between Tie Bars (HxV)(mm)
700×420
Machine Dimension (l x w x h)
5.3×1.8×2.3
Machine Weight (t)
8.1
MA1600WM160-80 Download PDF Now

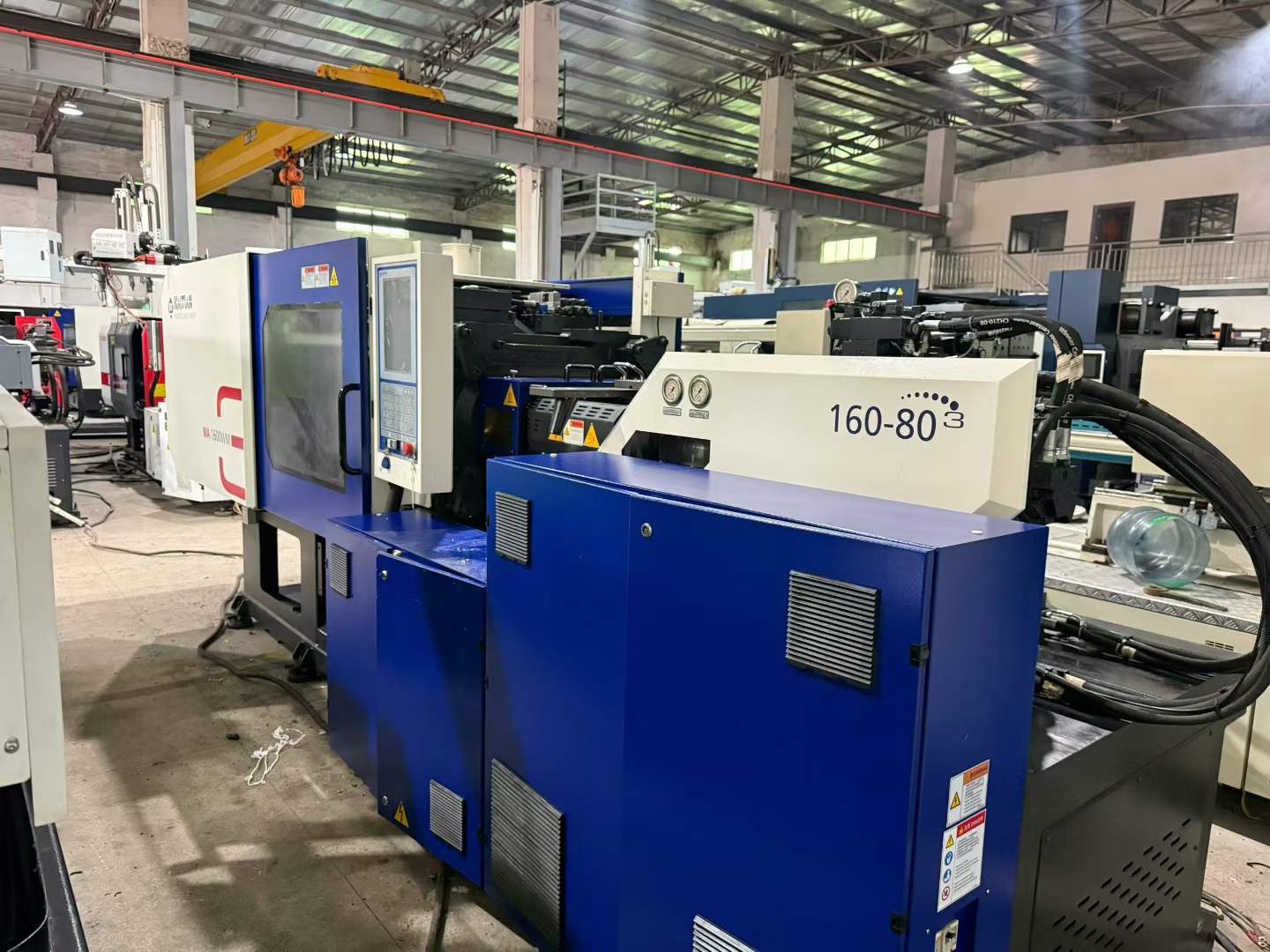

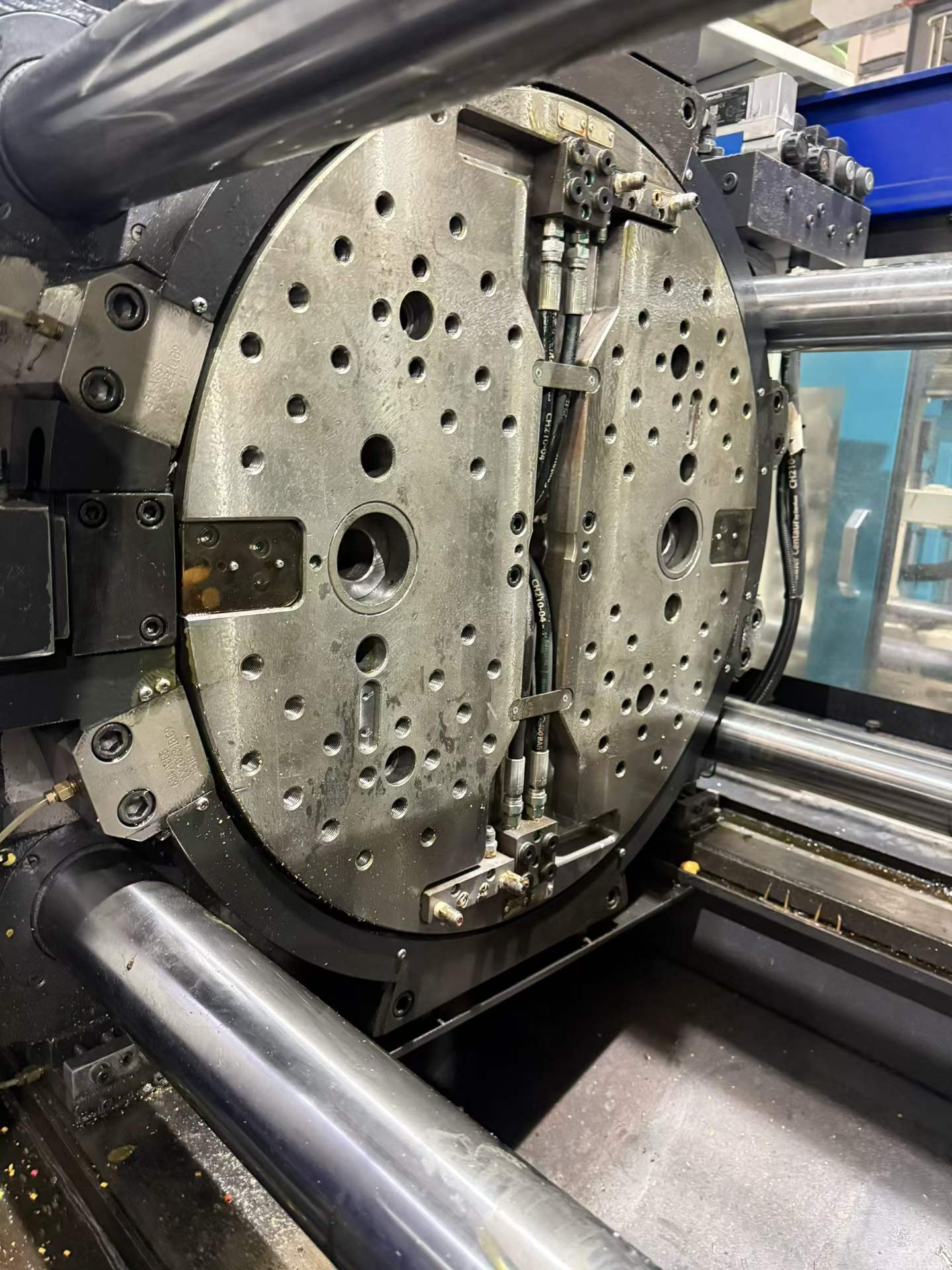

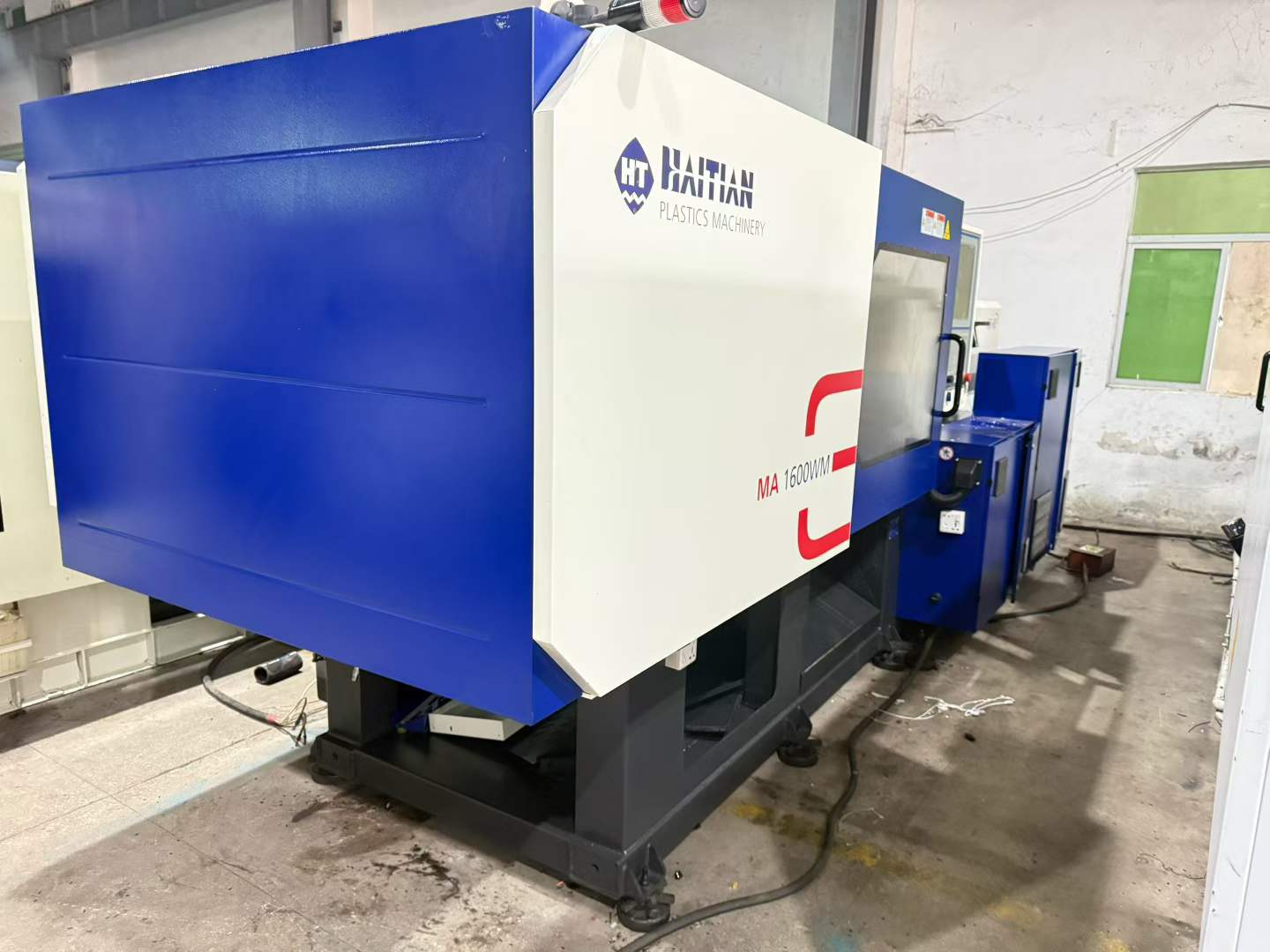

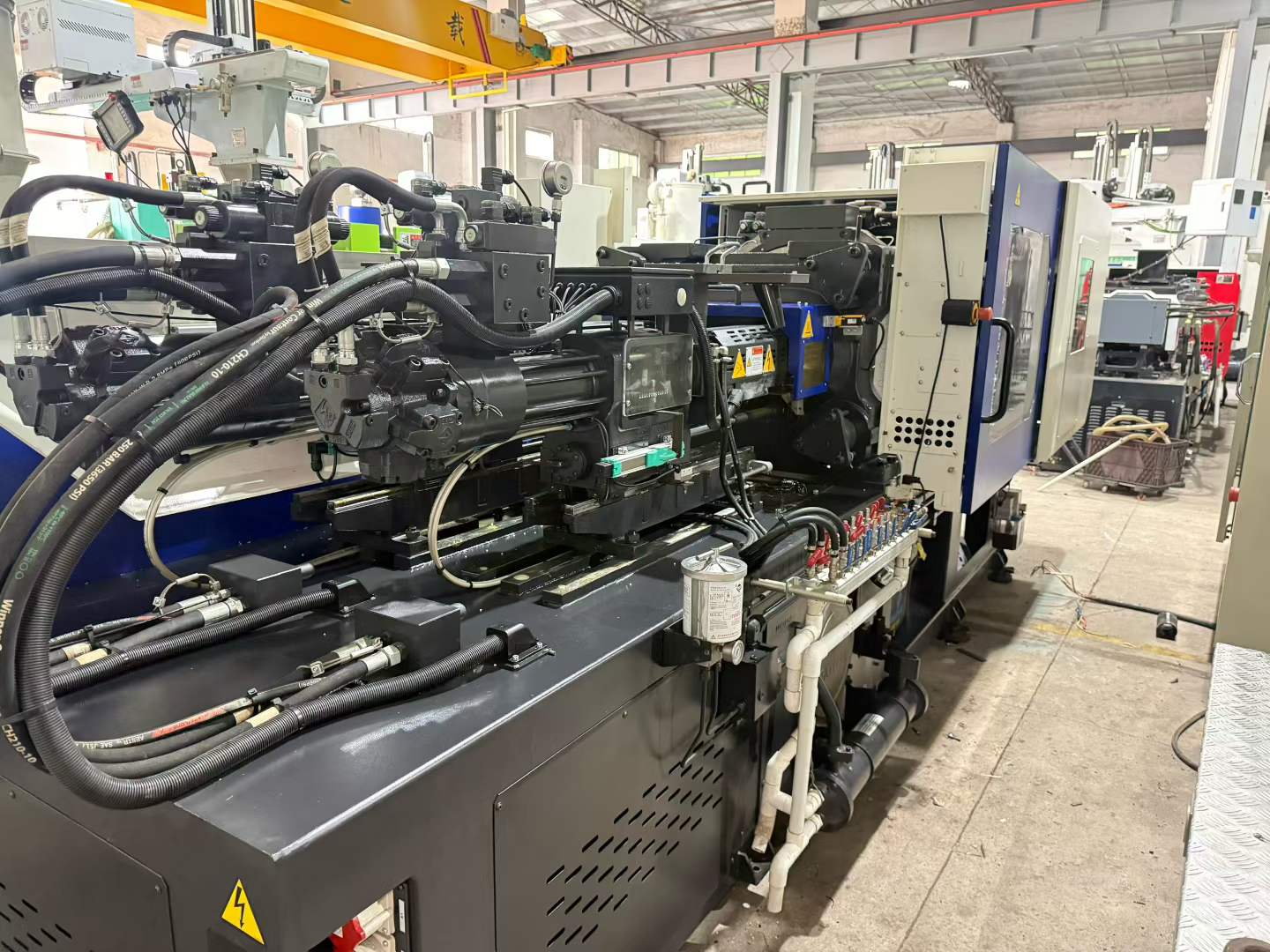

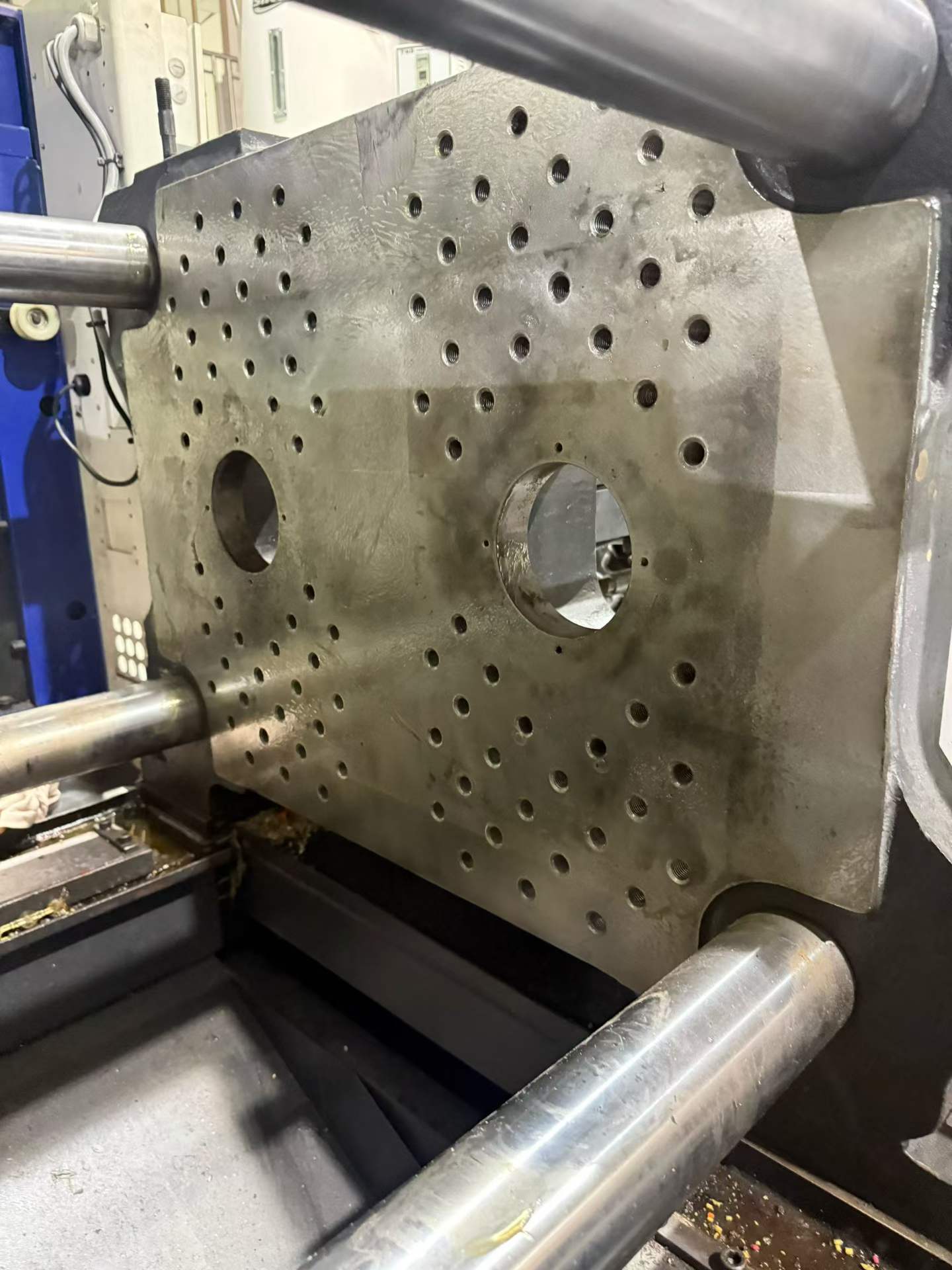

This is a used Haitian MA1600WM/160-80 two-color rotary injection molding machine with two injection units. Main 160 unit three screw options(A:26mm, B:30mm, C:34mm); Auxiliary 80 unit two screw options(A:22mm, B:26mm). Max clamping force:1600 kN. PS shot weight:60g(A)/80g(B)/103g(C) for 160 unit, 35g(A)/48g(B) for 80 unit, max injection pressure 240/180/140 MPa (main), 232/166 MPa (auxiliary). Tie-bar space 700×420 mm, mould height 150-460 mm, rotary platen diameter Ø730mm, ejector force 33×2 kN for smooth demolding of two-color plastic workpieces.

Suitable Products： ‑ Daily household plastics: two-color daily necessities, cosmetic caps, toothbrush handles, multi-color consumer plastic articles

  • Electronic components: dual-color electrical housings, button panels, insulated connector parts
  • Auto plastic parts: two-color auto interior trims, multi-color decorative covers, vehicle soft-hard composite moldings
  • Packaging & general two-color industrial plastic fittings
